What are differences between DTSC-200 and DTSC-200A ?

Authors list

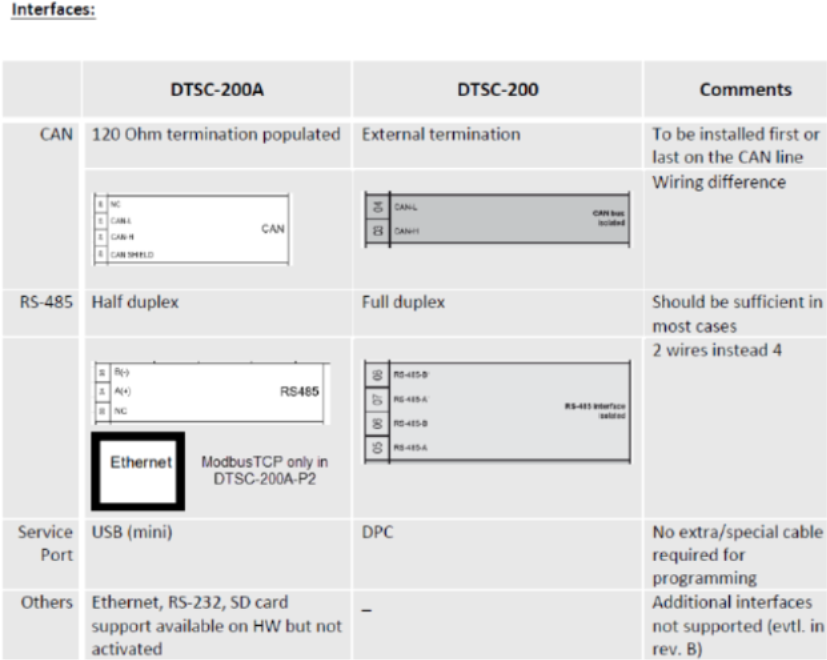

What are the differences of DTSC-200 and DTSC-200A

  • only ..5A Variant available
  • no need for DPC-1 or DPC-USB cable, USB cable can be used

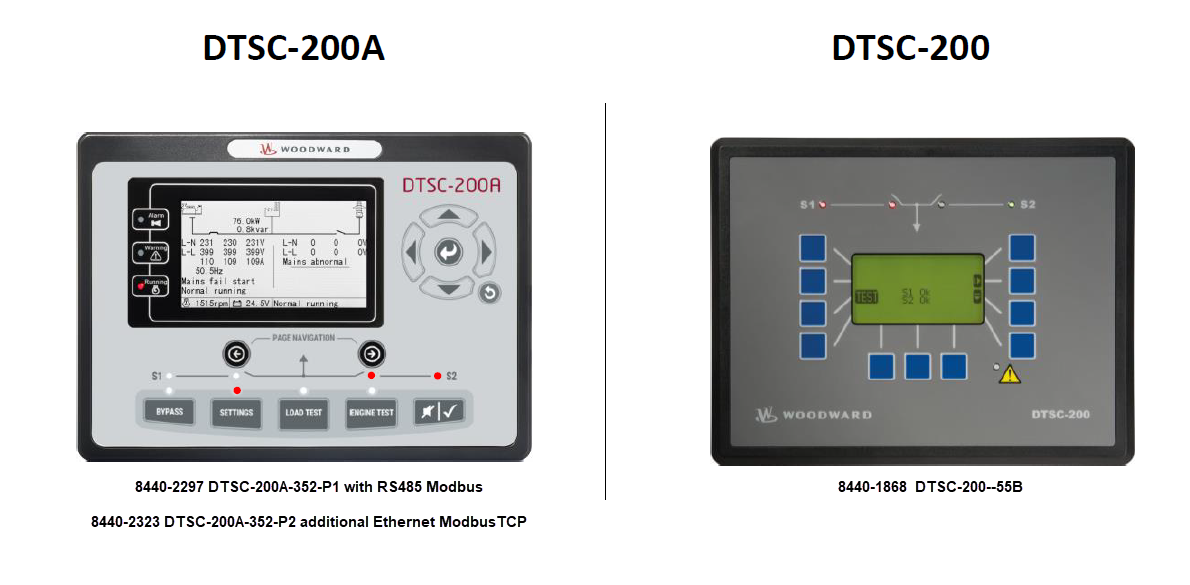

  • different form factor
  • Partnumber 8440-2297 CONTROL-DTSC-200A-352-P1
  • B37939 MANUAL-TM DTSC-200A INSTALLATION
  • B37940  MANUAL-TM DTSC-200A CONFIGURATION
  • B37941 MANUAL-TM DTSC-200A OPERATION
  • B37942 MANUAL-TM DTSC-200A APPLICATION
  • B37943 MANUAL-TM DTSC-200A INTERFACES
  • https://wss.woodward.com/manuals/PGC/DTSC_series/DTSC-200A
