Idle Run / Idle Mode configuration options in easYgen-3000XT

Authors list
  • Last updated: Nov 26, 2024 by Özgür Tosun

Idle Mode / Idle RunCopy link to Idle Mode / Idle Run to clipboard

- Short Description, with excerpts of our technical manual and ToolKit parameter screens example

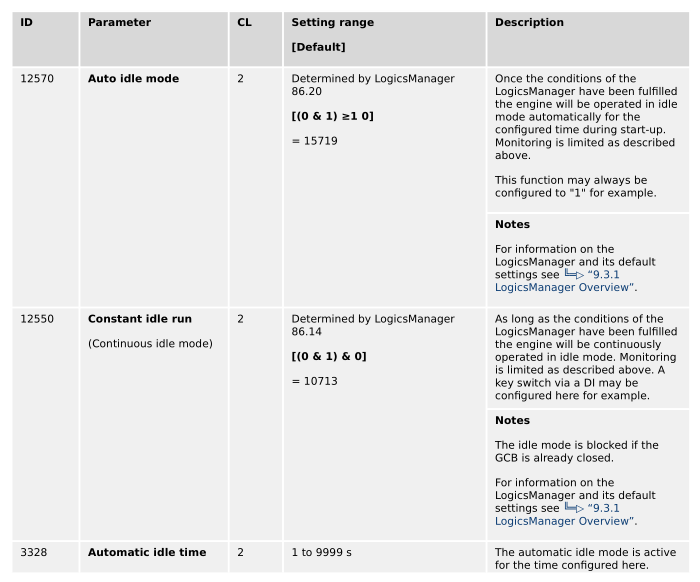

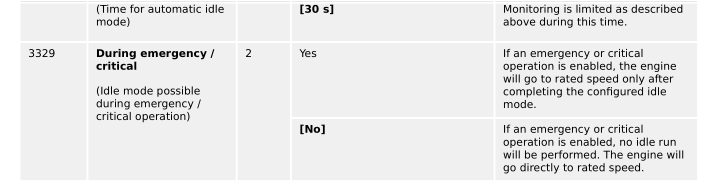

Parameter descriptionsCopy link to Parameter descriptions to clipboard

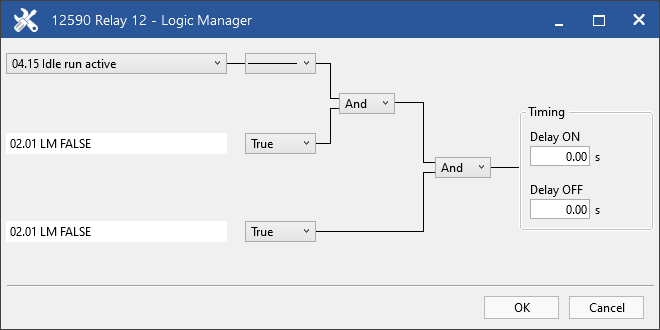

Configuration Screen in ToolKitCopy link to Configuration Screen in ToolKit to clipboard





Example for a configuration of a hard-wired relay output, that signals the engine to switch to Idle run.
