Where can I find Toolkit SID file ?

作成者一覧

ToolKit asks for a  *.SID file during the first connection to that device. Once this got defined, ToolKit will not ask again.

The *.SID file should be located in the same directory as the *.WTOOL file.


If you don’t have the *.SID file yet, many controls configuration files can get downloaded here:

https://www.woodward.com/en/support/industrial/technical-help-desk/control-configuration-files

  • download a zipped *.MSI file (Microsoft Installer Package), which contains the WTOOL and SID file


File types for your reference:

*.WTOOL File = contains all  display screens and pages for online configuration, which are associated with the respective *.SID file.

*.SID File =  contain all display and configuration parameters available in ToolKit

*.WSET File =  contain all settings of the ToolKit configuration parameters provided by the SID file or user-defined settings read from the unit.

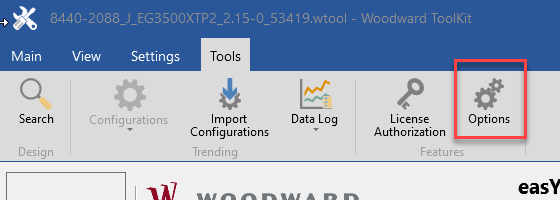

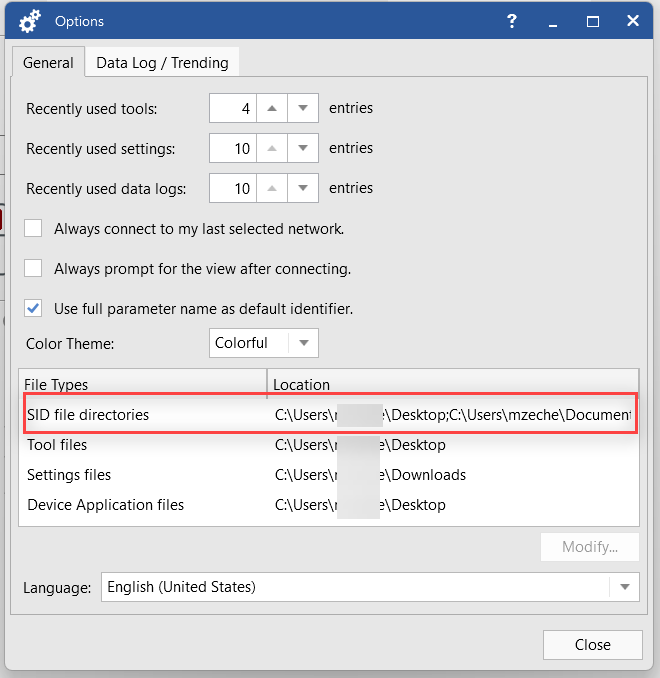

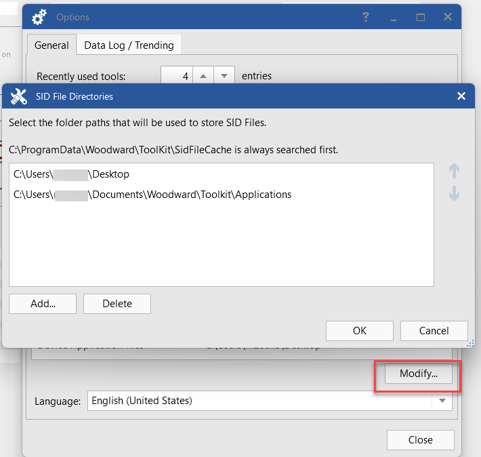

Please add or modify the file location directory:






Woodward Windows based installers, got changed over time, which results in different possible SID file directories:

  • C:\ProgramData\Woodward\ToolKit\Applications (ProgramData is a hidden folder in default settings of Microsoft)

  • C:\Program Files (x86)\Woodward\ToolKit\Applications

  • C:\Users\username\Documents\Woodward\Toolkit\Applications

  • user-defined locations
