There are two ways to get an easYgen with support for MDEC Protocols V302, V303, V304.
order the easYgen with the MDEC option: P/N 8440-2318 easYgen-3500XT-P2-K58
flash easYgen-3500XT-P2 (8440-2087 and 8440-2088) controls to enable MTU MDEC communication via a Software Licensing feature - P/N 10-030-826 LEGACY CAN AND MDEC SUPPORT PACKAGE
Old legacy GCP-3x-Option Sc02 and SC10 controls supported the MTU MDEC CAN communication, as well:
** attached a presentation file for this the MTU MDEC CAN bus communication **
Following ECU data are visualized :
The easYgen 3500XT-P2 receives following analog data from the MDEC via CAN2 :
11.67 MDEC Coolant temperature [°C]
11.68 MDEC Oil pressure [bar]
11.69 MDEC Oil temperature [°C]
11.70 MDEC Fuel temperature [°C]
11.71 MDEC Engine speed [rpm]
11.72 MDEC Operation hours [h]
11.73 MDEC Error code
11.74 MDEC Feedback speed [rpm]
The easYgen 3500XT-P2 receives the following binary data from the MDEC via CAN2 :
05.24 MDEC Yellow alarm
05.25 MDEC Red alarm
05.26 MDEC Alive timeout (True if MDEC Alive message is missing for more than • 1000 ms.)

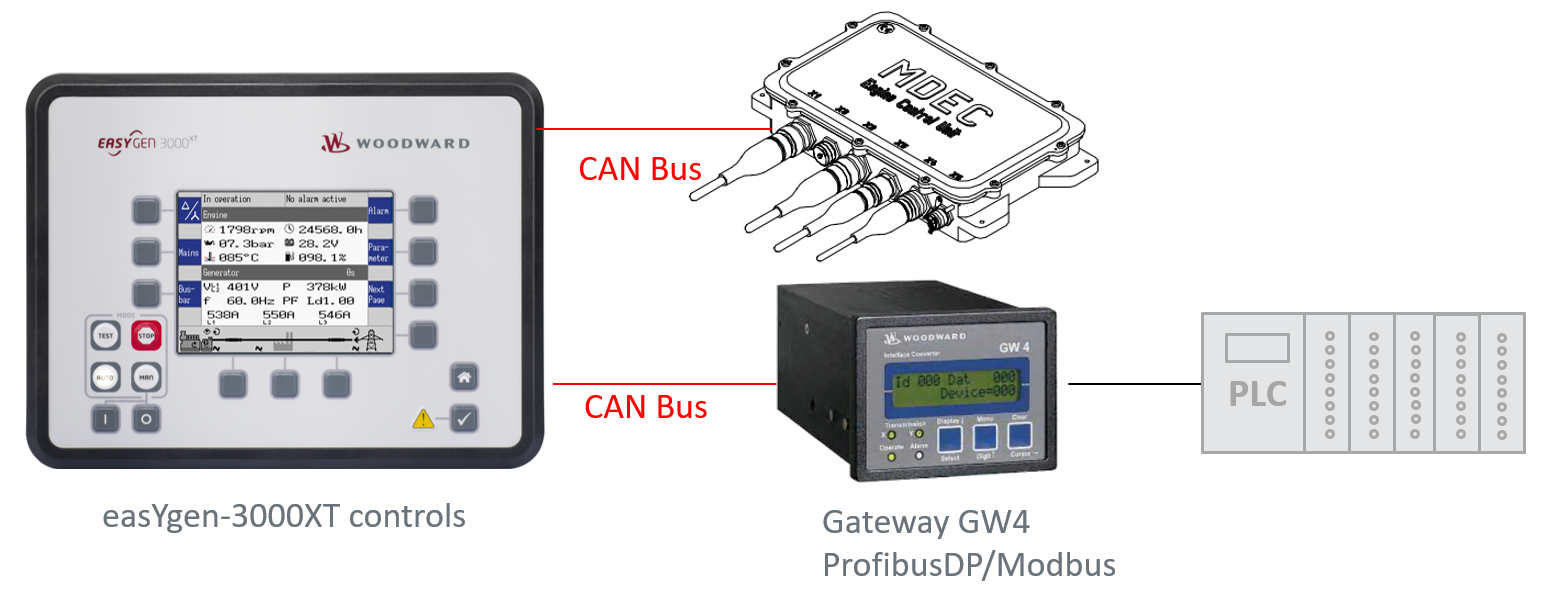

easYgen-3500XT-P2 is supporting speed bias connected to MDEC based on
CANbus,
0-5V ,
0-10V,
4-20mA,
raise & lower pot free contacts
This Software Package includes as well the legacy CAN bus of old GCP-3x controls,
enabling easYgen-3500XT-P2 to talk to obsolete Gateways like GW4-PRO or GW4- Modbus
connected to upper PLC Controllers.
Legacy CAN is not supporting LS-4 communication and Loassharing (Loadshare Gateway LSG required) !
