CAN bus Distances and CAN fiber extension gateways from EKS Engel

作成者一覧

Maximum CAN bus length The maximum length of the communication bus wiring is dependent on the configured baud rate. Observe the maximum bus length. (Source: CANopen; Holger Zeltwanger (Hrsg.); 2001 VDE VERLAG GMBH, Berlin und Offenbach; ISBN 3-8007-2448-0).


Recommendation is to think about CAN Fiber Optics conversion to increase CANbus distance

Download EKS Engel CAN Fiber Gateway application note here:

https://wss.woodward.com/manuals/PGC/easYgen-3000XT_series/Application_Notes/37598A_CAN-to-Fiber_converter.pdf

EKS 3DSTP CAD Modell

https://wss.woodward.com/manuals/Support/CAD_data_3rdparty_accessories/WWD_8445-1048_DL-CAN_CANR_Fibre_Modules_STEP_File.zip

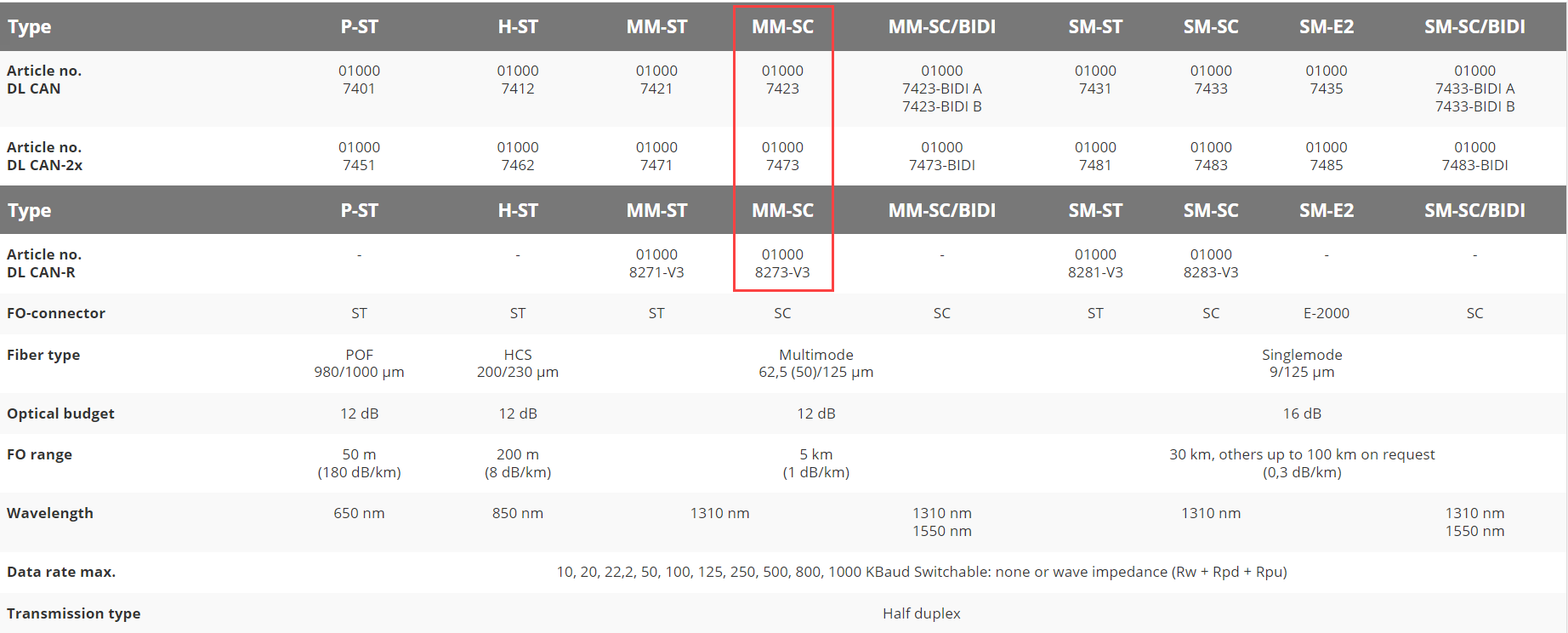

Woodward P/N 8445-1048 DL-CANR V2 REDUNDANT CAN  FIBER OPTIC SYSTEM  EKS Engel  P/N  010007573 - obsolete, do not mix V2 with new V3 converters !

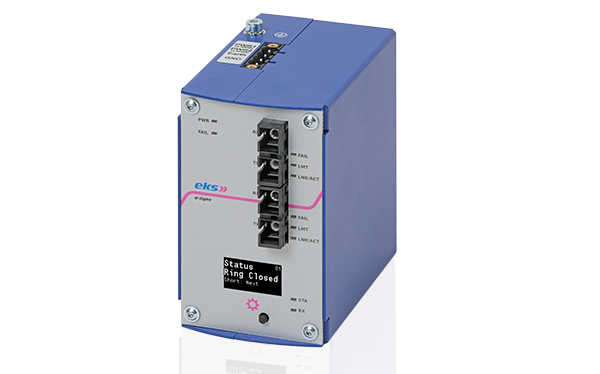

Woodward P/N 8445-1048 DL-CANR V3 REDUNDANT CAN  FIBER OPTIC SYSTEM  EKS Engel  P/N 01000-8273-V3

Woodward P/N  8445-1049  DL-CAN V2 CAN FIBER OPTIC SYSTEM  EKS Engel  P/N 010007423 https://www.eks-engel.de/en/products/industrial-network-technology/interface/the-dl-can-fv-dl-can-r/
