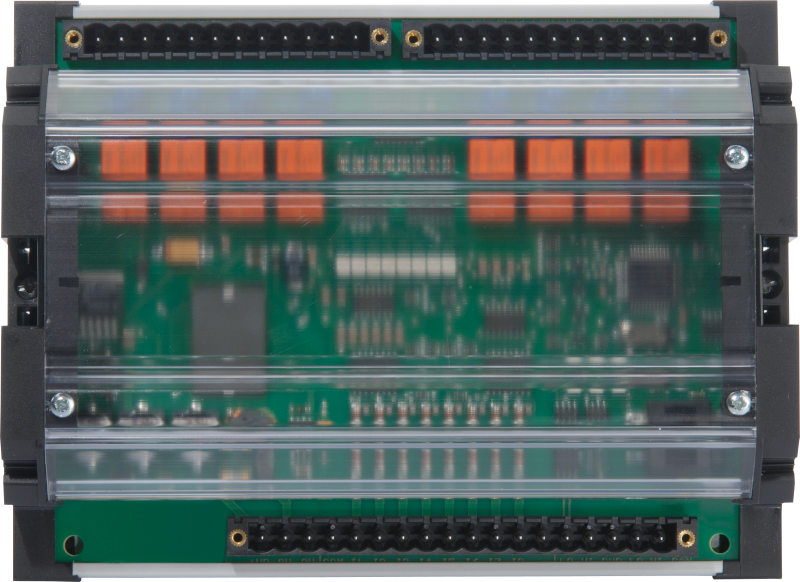

IKD1M |

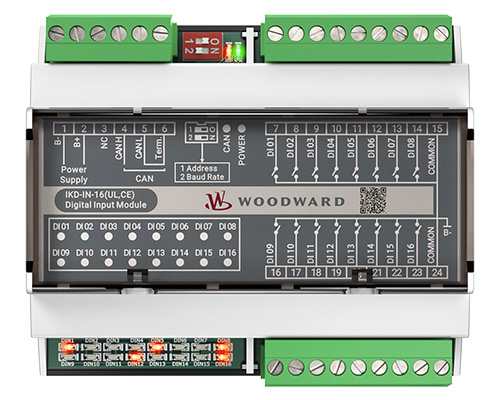

IKD-IN-16 |

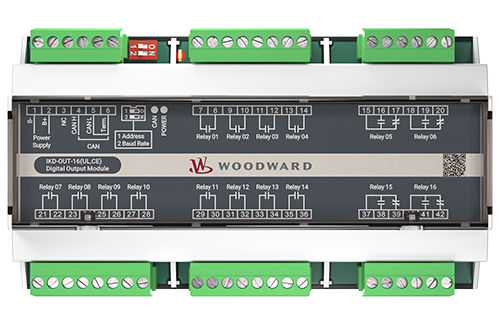

IKD-OUT-16 |
|
Housing dimensions (L x W x H mm) |
168 x 128 x 51 |
108 x 90 x 61 |
162 x 90 x 61 |
|
I/O |
8x discrete inputs 8x configurable |
16x discrete inputs |
12 x configurable 4 x configurable |
|
Power supply |
12/24 VDC |
12/24 VDC |
24 VDC |
|
Annunciation |
8x DI status LED |
1x power LED 1x CAN LED 16x DI status LED |
1x power LED 1x CAN LED |
|
Configuration |
PC tool and DPC cable |
DIP switches for CAN address (1/2) and No software programming required. |
|
|
|
|||
Note:
The new IKD modules have been designed to seamlessly communicate with easYgen devices without requiring a software update for the easYgens. This ensures that any easYgen or power management product previously supporting IKD modules will automatically support the new IKDs by default.
Please note that there may be exceptions with certain legacy products, such as GCP, where compatibility could vary.
A PDF article concerning the first (non-UL certified) generation IKD-IN-16 and IKD-OUT-16 is attached.
